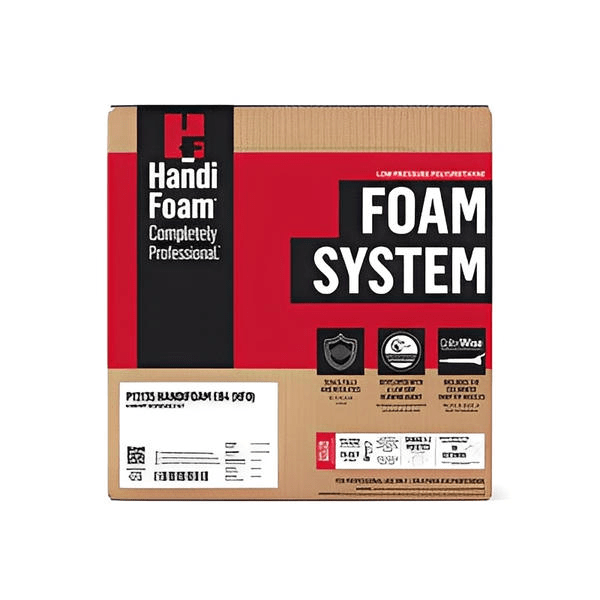

Handi-Foam E84 Spray Foam Insulation II-205
Handi-Foam® E84 Spray Foam Insulation II-205 is a low-pressure, two-component, medium-density spray polyurethane foam (SPF) system designed for professional use. Engineered to deliver superior thermal insulation, air sealing, and structural reinforcement, it conforms to ASTM E84 Class 1 (A) fire ratings and offers dependable performance in demanding environments.
Key Features:
High Thermal Efficiency:
Exceptional R-value of 6.6 per inch (initial), reducing to 6.1 aged — ideal for enhancing energy efficiency in residential, commercial, and industrial applications.
Durable & Reliable:
In-place density of 2.11 lbs/ft³ and >90% closed-cell content ensure robust insulation with excellent resistance to moisture, air infiltration, and structural movement.
Quick Application:
Fast tack-free time (30–60 seconds) and cuttable within 10 minutes. Designed for ease of use with controlled expansion and consistent coverage.
Versatile Use:
Suitable for filling and sealing voids of various sizes, dampening sound, and reducing vibrations in wall cavities, crawlspaces, rim joists, and more.
Safe & Code Compliant:
Meets fire performance standards (ASTM E84 Class A), with low VOC emissions (37 g/l) and excellent fungal resistance (ASTM G21: No Growth). Chemically inert when cured and safe for use around wiring, PEX, PVC, and most common building materials.
Specifications:
- R-Value: 6.6 @ 1”, 13.2 @ 2” (initial)
- K-Factor: 0.152 BTU∙inch/ft²∙h∙°F @ 1” (initial)
- Air Barrier: 0.003 cfm/ft² @ 1” (ASTM E283-modified)
- Perm Rating: 1.4 perms at 1.5” (Class III Vapor Retarder)
- Fire Rating: Flame Spread Index: 5 | Smoke Developed: 450 @ 2” (ASTM E84)
- Compressive Strength: 24.2 psi | Tensile Strength: 40.3 psi
Application Conditions:
- Chemical Temp: 75–85°F (24–29°C)
- Surface Temp: 40–100°F (4–38°C)
- Cured Foam Range: -200°F to +240°F (-129°C to +116°C)
Storage & Shelf Life:
Store in a cool, dry place away from direct sunlight and heat sources. Avoid exposure above 90°F (32°C). Shelf life is 24 months when properly stored.
PPE Requirements:
For professional use only. Use in a well-ventilated area with proper respiratory protection (e.g., PAPR), safety goggles or glasses, nitrile gloves, and full protective clothing.
