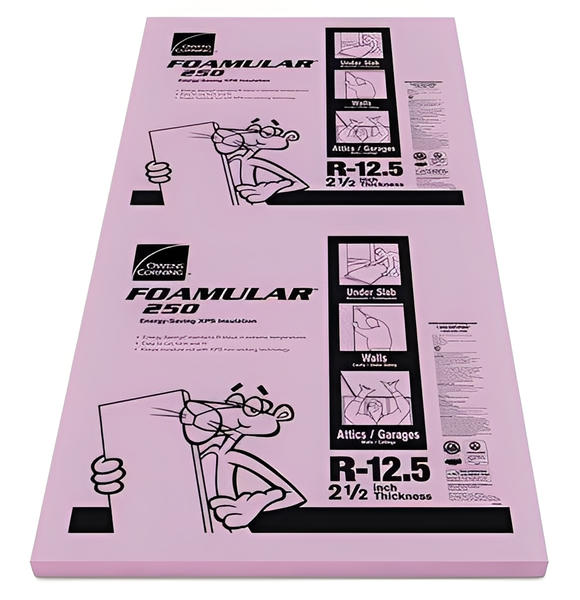

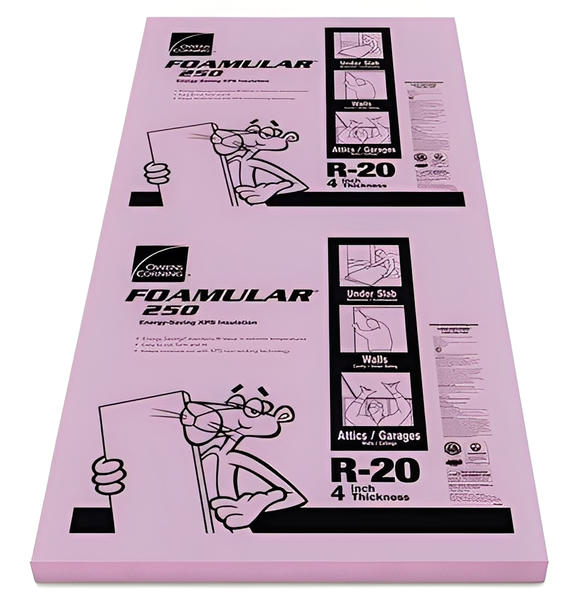

Owens Corning FOAMULAR 250 XPS Insulation Board - All Sizes
Please Note We Can Not Ship To The Following States: California, Colorado, Connecticut, Delaware, Maine, Maryland, Massachusetts, New Hampshire, New Jersey, New York, Rhode Island, Vermont, Virginia, Washington
Owens Corning FOAMULAR 250 Extruded Polystyrene (XPS) Insulation is a closed-cell, moisture-resistant rigid foam board well suited to meet the needs for a wide variety of building applications. FOAMULAR 250 XPS insulation board is great for many residential and commercial construction applications such as wall furring, perimeter/foundation, cavity wall, pre-cast concrete, under a slab, crawl spaces, sheathing, and other applications.
| Thickness | Sq Ft Per Board | R-Value |
|---|---|---|

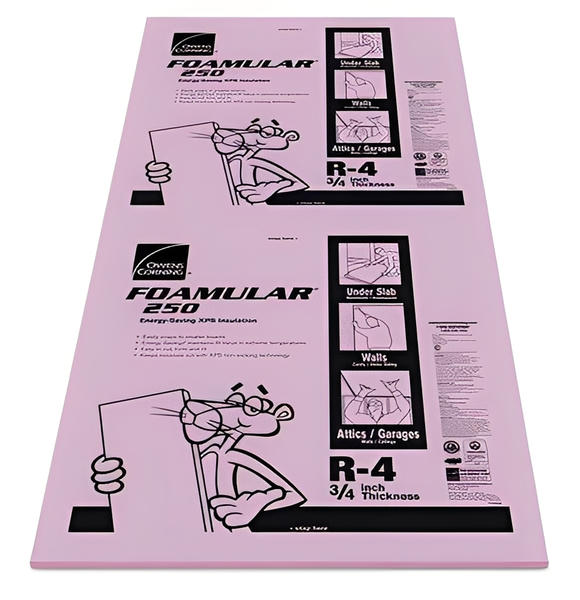

| 3/4" | 32 Sq Ft | R4 |

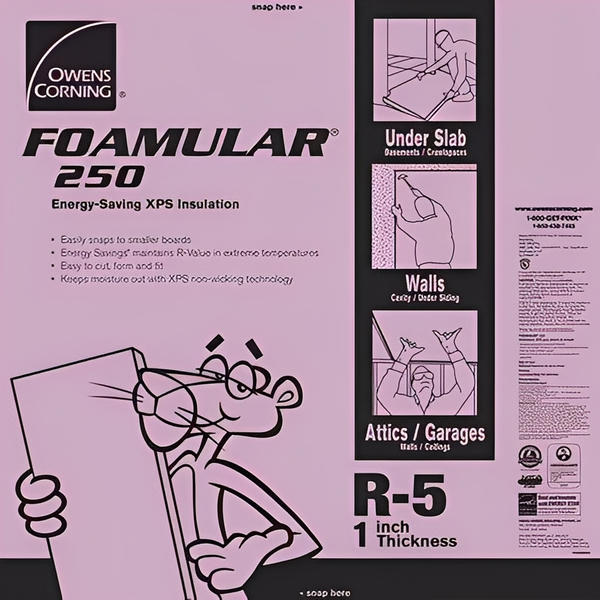

| 1" | 32 Sq Ft | R5 |

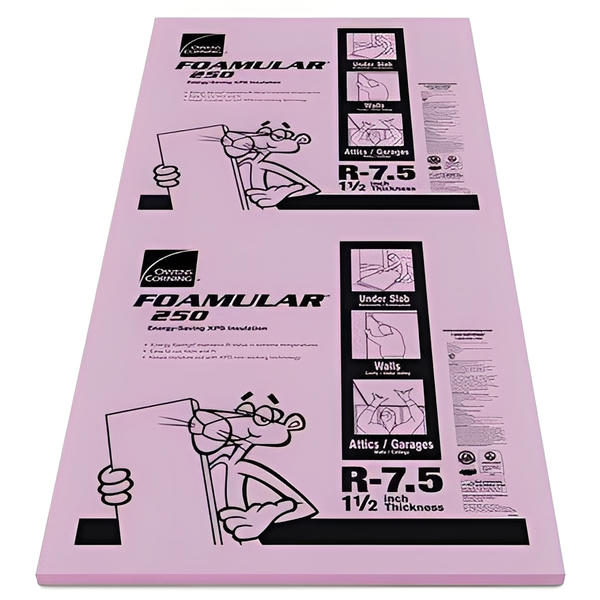

| 1.5" | 32 Sq Ft | R7.5 |

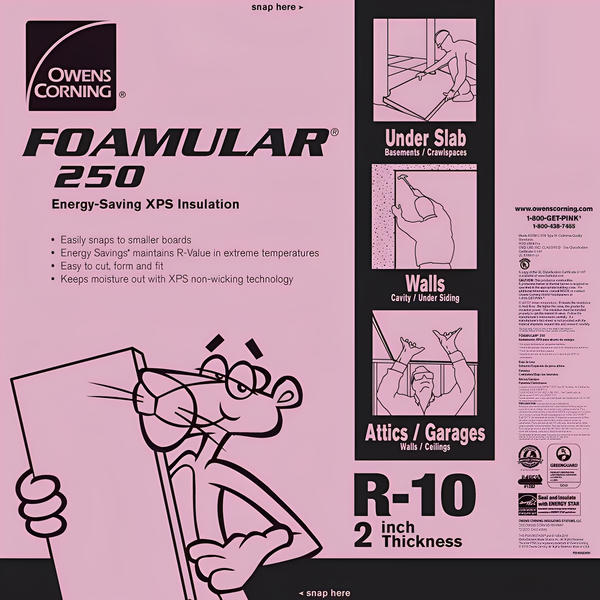

| 2" | 32 Sq Ft | R10 |
| 2.5" | 32 Sq Ft | R12.5 |

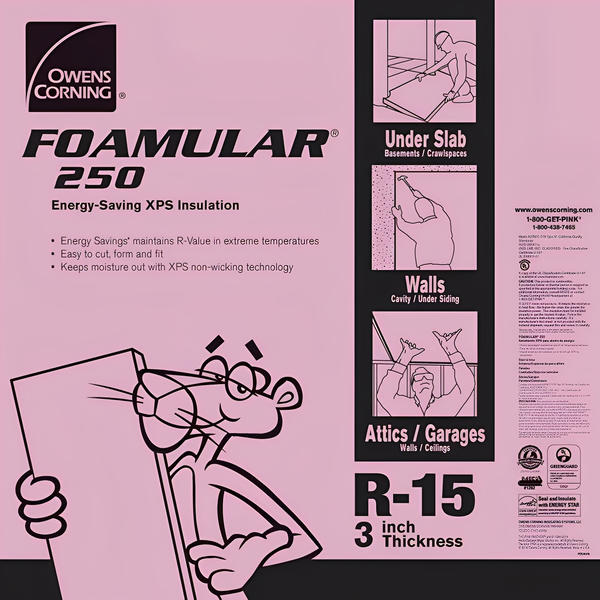

| 3" | 32 Sq Ft | R15 |
| 4" | 32 Sq Ft | R20 |
Features
- Excellent long-term stable insulating performance at R-5 per inch
- Exceptional moisture resistance, long-term durability
- Lightweight, durable rigid foam panels are easy to handle and install
- Easy to saw, cut or score

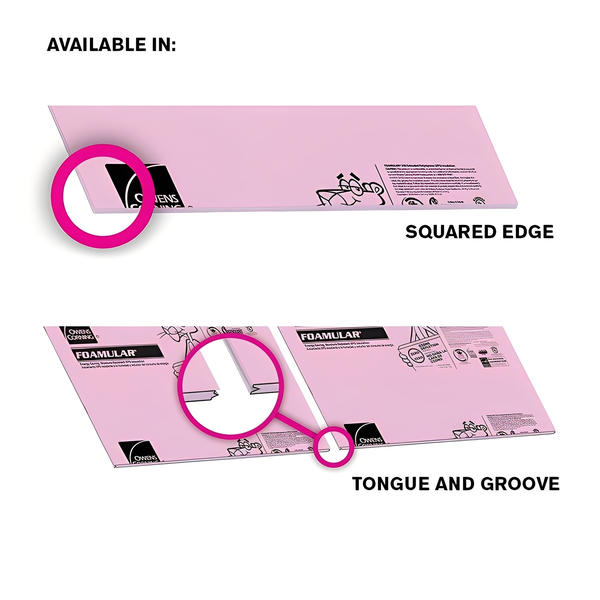

- Scored Square Edge
Applications
• Slows the transmission of water vapor and moisture in masonry walls

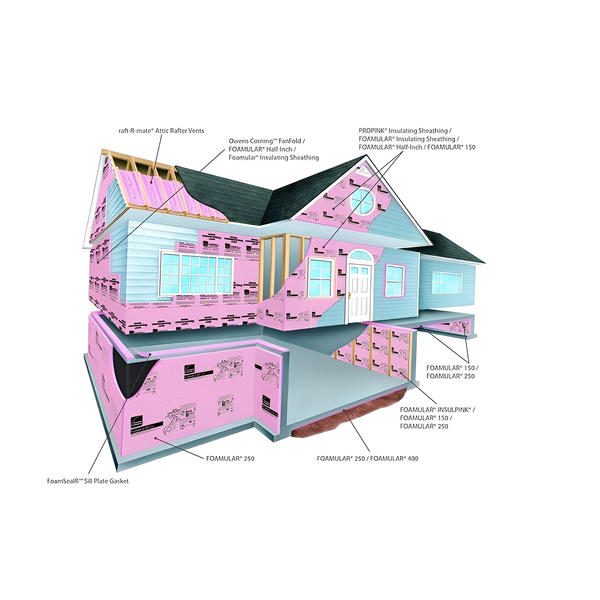

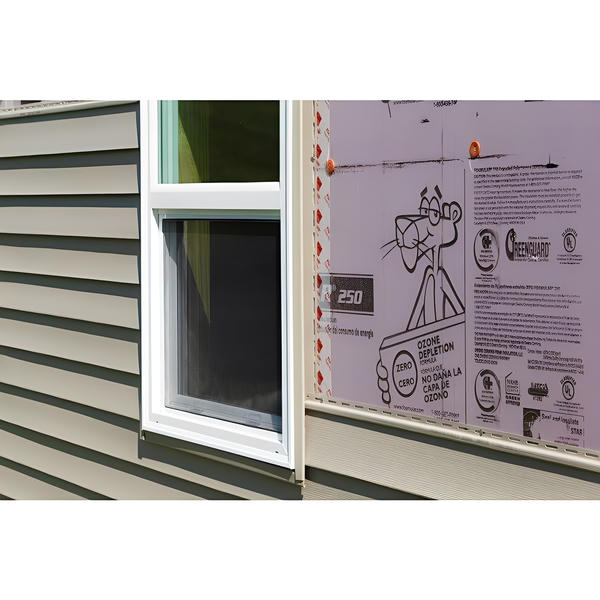

• Provides continuous insulation over wood or steel stud framing, in insulated concrete sandwich panel walls, in masonry unit cavity walls, or when used with non-penetrating, surface mounted furring systems over masonry or concrete walls
• Insulates and retains its properties in below-grade perimeter and foundation applications, or directly beneath the concrete slab to complement the insulating sheathing envelope around the building framing
• FOAMULAR 250 XPS insulation is great for below-grade applications. FOAMULAR XPS insulation is resistant to degradation from the components of common soils
and will retain its insulating performance characteristics even after prolonged exposure to moisture
• Extruded Polystyrene Provides a weather-resistant barrier (when joints are sealed) to enhance the building’s resistance to air and moisture penetration
Product Data Table
| Property | Test Method2 | Value |
|---|---|---|
| Thermal Resistance3, R-Value (180 days) minimum, hr·ft2·°F/Btu (RSI, °C·m2/W) @ 75°F (24°C) mean temperature |
ASTM C518 | |
| ¾" Thickness | 4.0 (0.70) | |
| 1" Thickness | 5.0 (0.88) | |
| 1½" Thickness | 7.5 (1.32) | |
| 2" Thickness | 10 (1.76) | |
| 2½" Thickness | 12.5 (2.20) | |
| 3" Thickness | 15 (2.64) | |
| 4" Thickness | 20 (3.52) | |
| @ 40°F (4.4°C) mean temperature | ||
| ¾" Thickness | 4.3 (0.76) | |
| 1" Thickness | 5.4 (0.95) | |
| 1½" Thickness | 8.1 (1.43) | |
| 2" Thickness | 10.8 (1.90) | |
| 2½" Thickness | 13.5 (2.38) | |
| 3" Thickness | 16.2 (2.85) | |
| 4" Thickness | 21.6 (3.80) | |
| Long Term Thermal Resistance, LTTR-Value3, minimum hr·ft2·°F/Btu (RSI, °C·2/W) @ 75°F (24°C) mean temperature |
CAN/ULC S770-03 | |
| ¾" Thickness | N/A | |
| 1" Thickness | 5.0 (0.88) | |
| 1½" Thickness | 7.8 (1.37) | |
| 2" Thickness | 10.6 (1.87) | |
| 2½" Thickness | 13.4 (2.36) | |
| 3" Thickness | 16.2 (2.85) | |
| 4" Thickness | 22.0 (3.87) | |
| Compressive Strength, minimum psi (kPa) | ASTM D1621 | 25 (172) |
| Flexural Strength, minimum psi (kPa) | ASTM C203 | 75 (517) |
| Water Absorption, maximum % by volume | ASTM C272 | 0.10 |
| Water Vapor Permeance, maximum perm (ng/Pa·s·m2) | ASTM E96 | 1.5 (86) |
| Dimensional Stability, maximum % linear change | ASTM D2126 | 2.0 |
| Flame Spread | ASTM E84 | 5 |
| Smoke Developed | ASTM E84 | 45-175 |
| Oxygen Index, minimum % by volume | ASTM D2863 | 24 |
| Service Temperature, maximum °F (°C) | 165 (74) | |
| Linear Coefficient of Thermal Expansion, in/in/°F (m/m°C) | ASTM E228 | 3.5 x 10-5 (6.3 x 10-5) |
