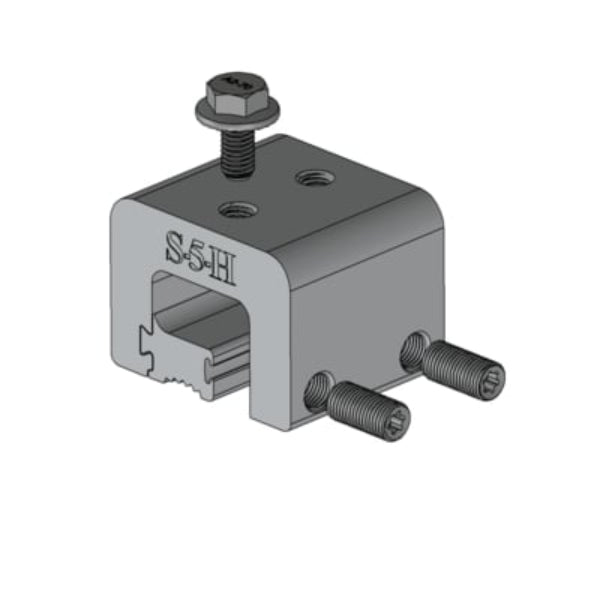

S-5-H Metal Roof Clamps

The S-5-H clamp (“H” is for Horizontal seam) is designed to accommodate horizontal seams that are not fully closed. The setscrews are side-install rather than top-down. When the seam is horizontally-oriented but completely closed. The S-5-H is unique in that it allows for attachment to a horizontal seam on the vertical leg of the seam.

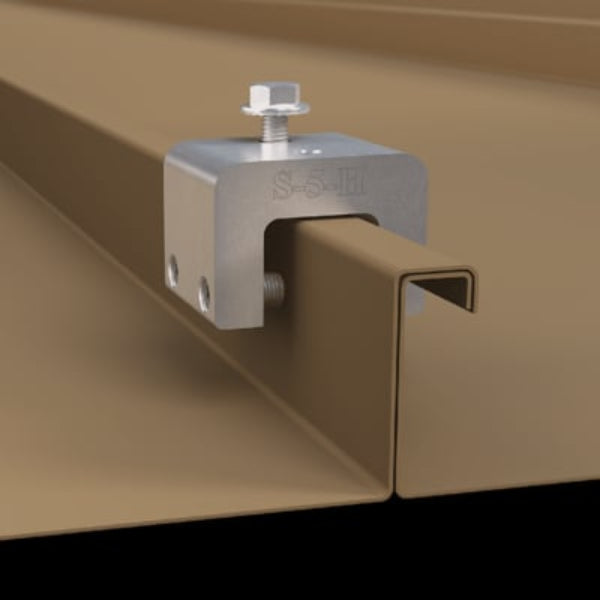

The clamp's two-piece design allows it to be installed anywhere along the length of the rib, making installation fast and easy! Just place the clamp on the seam, slide the insert piece into place, and tighten the setscrews.

After the clamp is installed, affix ancillary items using the top stainless steel bolt provided. The S-5-H is perfect for use with S-5! ColorGard® snow retention system and other heavy-duty applications.

Specifications:

• For standing seam panels with horizontal seam orientation (single-folded)
• Accommodates roof panels with a horizontal seam not fully closed
• Two-piece design allows for easy attachment anywhere along seam length

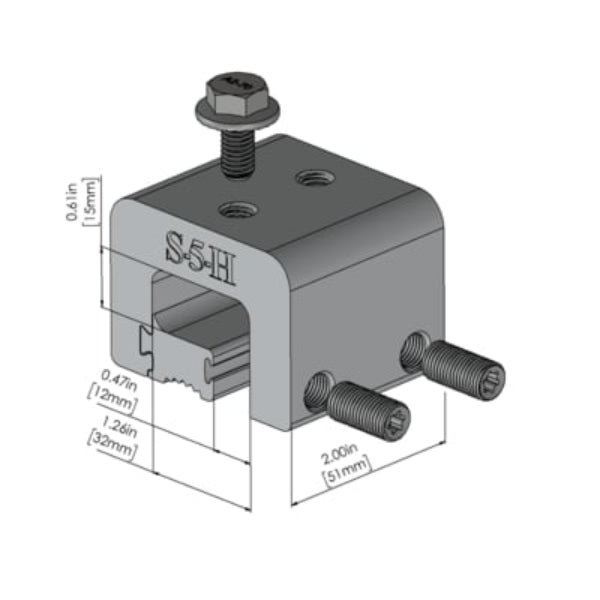

• Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
• Used with snow retention and other heavy-duty applications
• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

It is also available in the smaller S-5-H (Mini).

The S-5-H clamp is designed for horizontal applications, ensuring compatibility with horizontal seams that may not be fully closed, ideal for securely attaching accessories to roofs without compromising the integrity of the seam.

If this clamp does not match your roof profile, browse our other metal roof clamps below to find one that best matches your roof profile.





S-5! offers two main warranties: a Lifetime Product Defect Warranty, covering defects in materials and workmanship, and a System Performance Warranty for the ColorGard® Snow Retention system, which is unique in the snow guard market and has a term of 30 years or the life of the roof, whichever comes first. The Product Defect Warranty has been extended to a lifetime term based on their long history of minimal claims and their products designed to outlast the roofs they are mounted on. For more detailed information, please visit the S-5! Warranty page.
