Only 0.35 inch / 9 mm thick (60 percent thinner than the standard under cabinet lighting*).
Sturdy aluminum body. One of the best in the market for its exceptional durability.
Simple plug-in installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
Bright 3360 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
Each individual has a bright 42 LED (Epistar 3528).
It only consumes 36-watt maximum. Saves at least 80 percent on energy.
24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

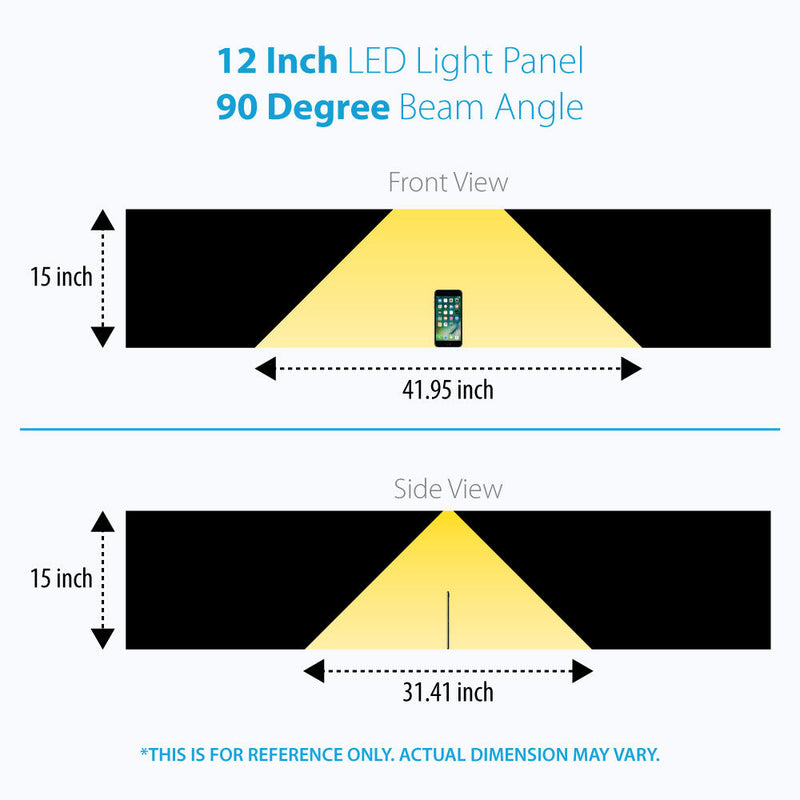

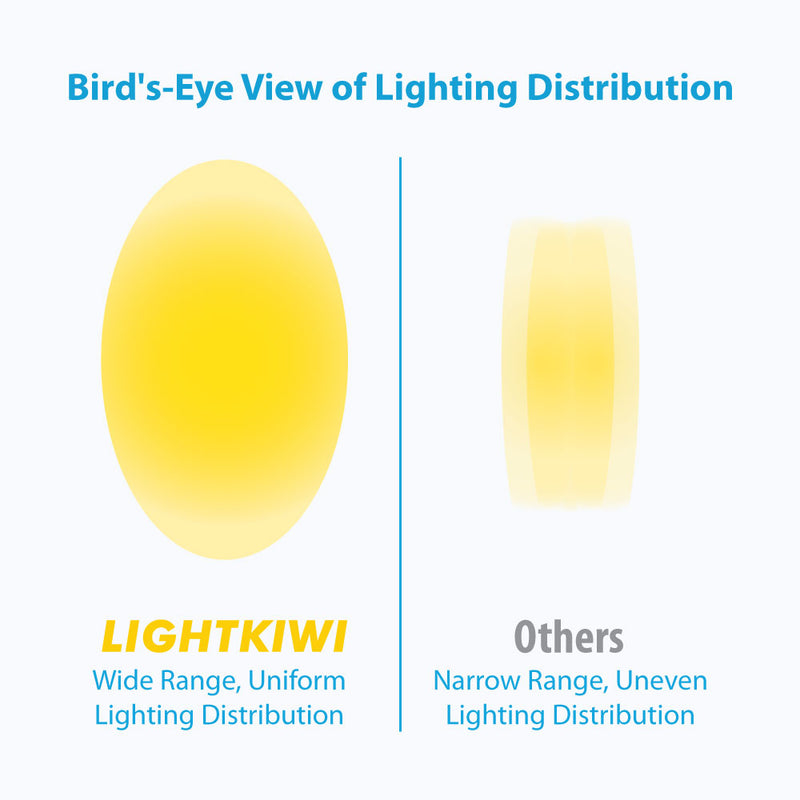

The light distributes in a 90-degree beam angle to optimize & maximize lighting under the cabinet.
Easily control the brightness to the desired level using the inline dimmer switch.
To ensure maximum safety, Modular LED Light Panel & Power Supply have been certified by UL.

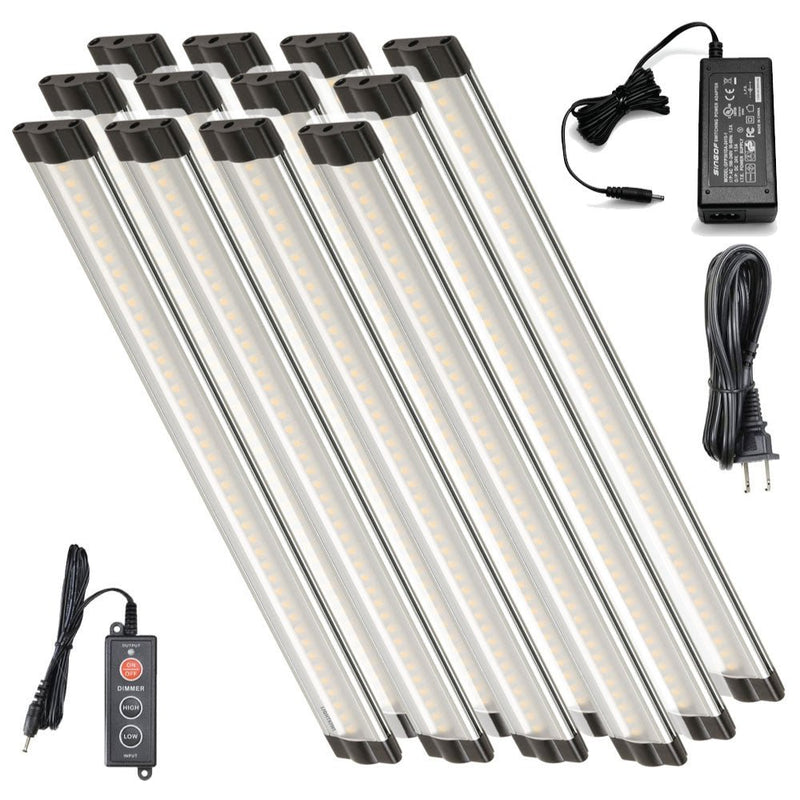

What's Included
12 x Lightkiwi 12 Inch Cool White Modular LED Under Cabinet Light Panel
1 x 36 Watt Power Supply - Link up to (12) 12-inch panels

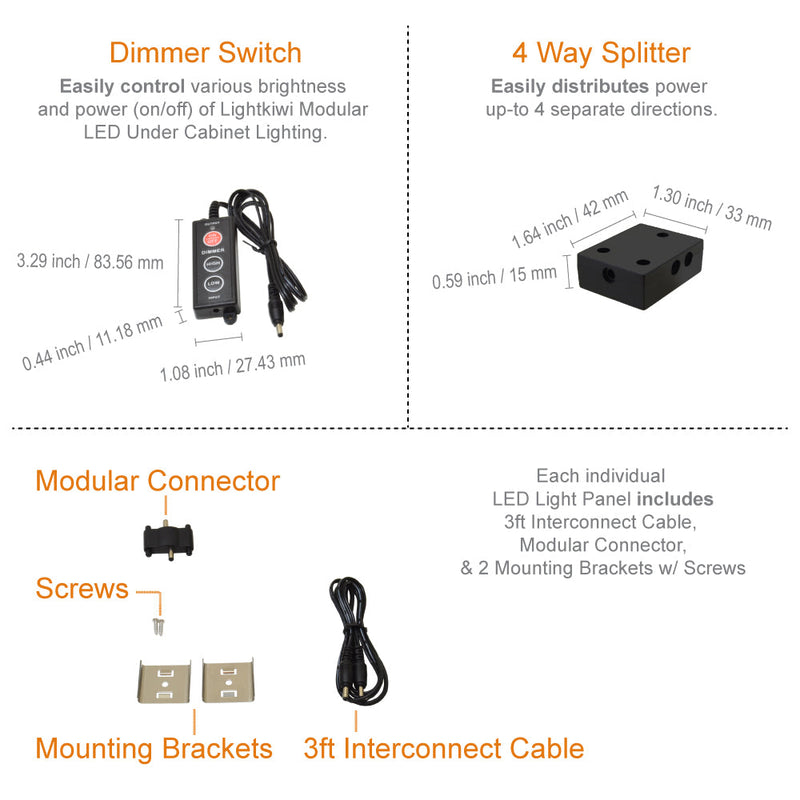

1 x Dimmer Switch
1 x 4-way Splitter

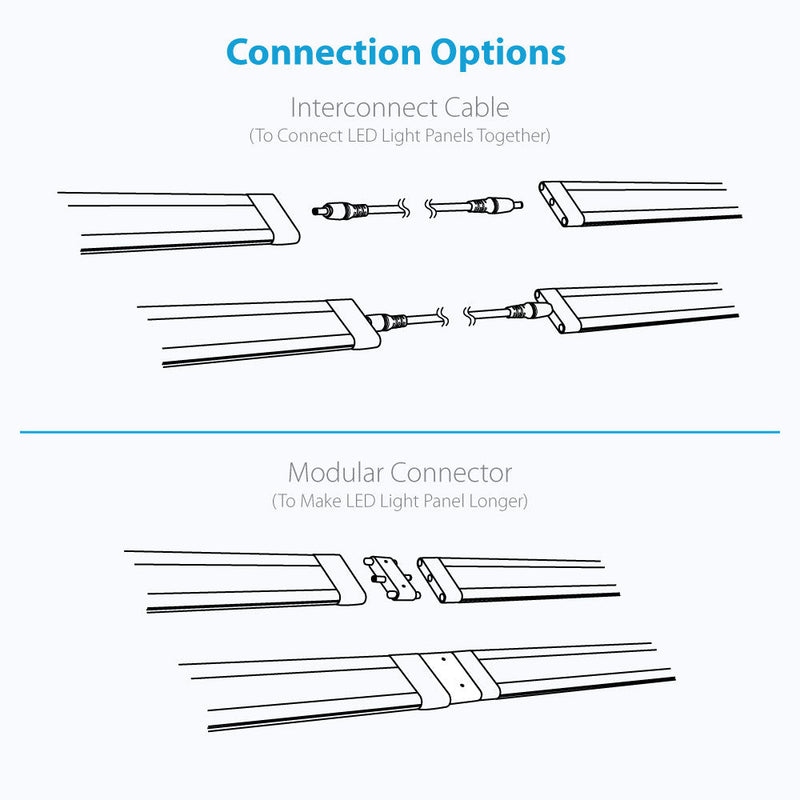

12 x 3ft Interconnect Cable
12 x Modular Connector

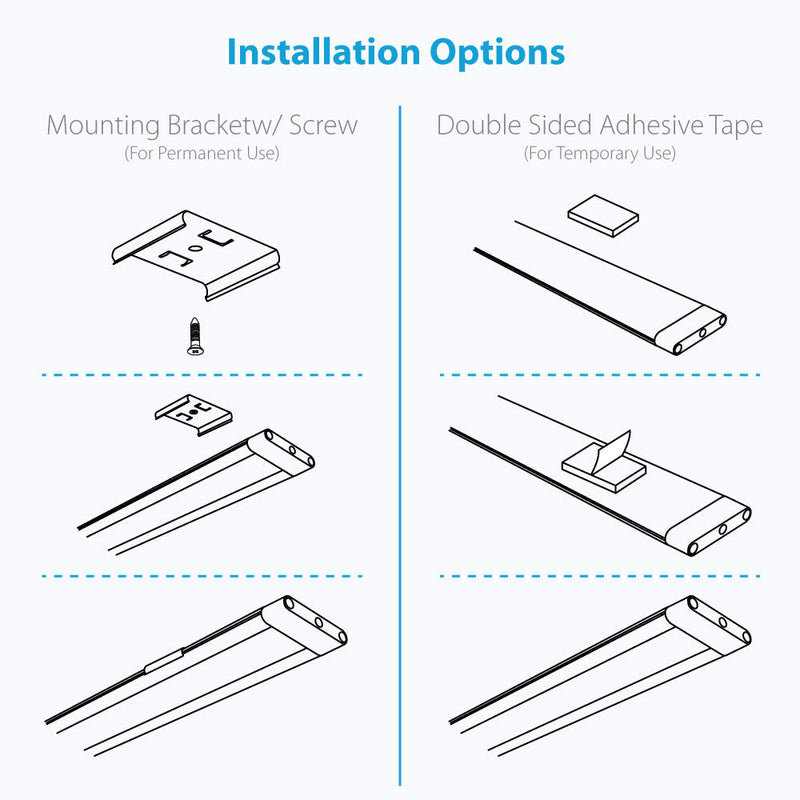

24 x Mounting Bracket w/ Screw
If you want a different dimmer type, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.

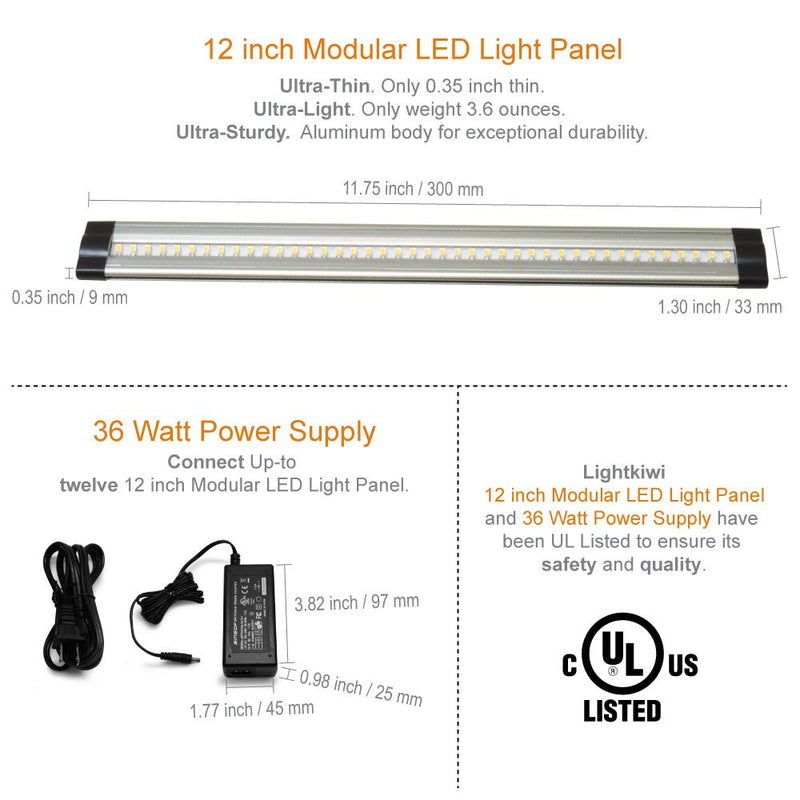

12 Inch LED Light Panel 11.75 x 1.30 x 0.35 Inch. (300 x 33 x 9 mm)
36 Watt Power Supply 3.82 x 1.77 x 1.14 inch (97 x 45 x 29 mm)
Dimmer Switch 3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)
4-Way Splitter 1.64 x 1.30 x 0.59 Inch. (42 x 33 x 15 mm)
Modular Connector 0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)
Hardwire Installation If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.
If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.
Power Supply Start-Up time Depends on the wattage of the power supply, the start-up time may differ. Please use matched wattage of power supplies for the best result.
